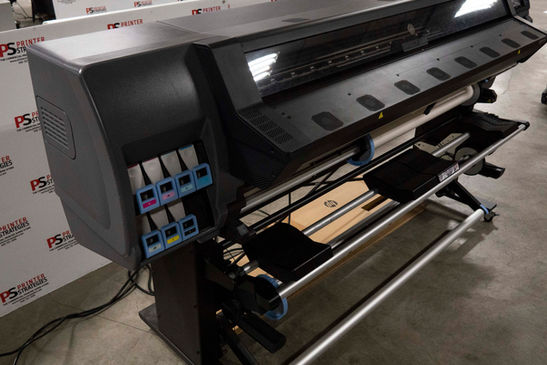

HP Latex 360 Wide Format Printer
P
I
C
T
U
R
E
S
V
I
D
E
O
S
P
I
C
T
U
R
E
S
V
I
D
E
O
S
SN: MY61L6900N
•Print on traditional signage substrates and beyond—up to 64 inches—print textiles with the ink collector
•Reach new indoor spaces that solvent can’t, like healthcare— water-based HP Latex Ink prints are odorless
•Produce sharp, consistent, repeatable image quality with high efficiency curing, 6 colors, and 1200 dpi Same-day delivery—for highly demanding turnarounds
•Reach production speeds and avoid wait time—prints come out completely dry and ready to finish and deliver
•High quality at high speeds—31 m2 /hr high-speed outdoor quality with HP OMAS and HP Latex Optimizer
•Deliver with confidence—outdoor prints last up to 5 years laminated, 3 years unlaminated
•You can minimize damage risk—scratch resistance is comparable to hard-solvent inks on SAV and PVC banner
WIDE FORMAT PRINTER SPECIFICATIONS
Printing Printing modes 91 m²/hr (980 ft²/hr) – Max Speed (1 pass)
31 m²/hr (334 ft²/hr) – Outdoor High Speed (4 pass)
23 m²/hr (248 ft²/hr) – Outdoor Plus (6 pass)
17 m²/hr (183 ft²/hr) – Indoor Quality (8 pass)
14 m²/hr (151 ft²/hr) – Indoor High Quality (10 pass)
6 m²/hr (65 ft²/hr)- Backlits, Textiles, and Canvas (16 pass)
5 m²/hr (54 ft²/hr) – High Saturation Textiles (20 pass)
Print resolution Up to 1200 x 1200 dpi
Margins 5 x 5 x 0 x 0 mm (0.2 x 0.2 x 0 x 0 in) (without edge holders)
Ink types HP Latex Inks
Ink cartridges Black, cyan, light cyan, light magenta, magenta, yellow,
HP Latex Optimizer
Cartridge size 775 ml
Printheads 6 (2 cyan/black, 2 magenta/yellow, 1 light magenta/light
cyan, 1 HP Latex Optimizer)
Color
consistency
<= 2 dE (95% colors)
<= 1 dE average22
Media Handling Roll feed; take-up reel; automatic cutter (for vinyl, paperbased media, backlit polyester film)
Media types Banners, self-adhesive vinyls, films, fabrics, papers, wallcoverings, canvas, synthetics, mesh, textiles
Roll size 254 to 1625-mm (10 to 64-in) rolls (580 to 1625-mm
(23 to 64-in) rolls with full support)
Roll weight 42 kg (92.6 lb)
Roll diameter 250 mm (9.8 in)
Thickness Up to 0.5 mm (19.7 mil)
Applications Banners, Displays, Double-sided banners, Exhibition, Event graphics,
Exterior signage, Indoor posters, Interior decoration, Light boxes – film,
Light boxes – paper, Murals, POP/POS, Posters, Textile, Vehicle graphics
Connectivity Interfaces
(standard)
Gigabit Ethernet (1000Base-T)
Dimensions
(w x d x h)
Printer 2561 x 840 x 1380 mm (101 x 33 x 54 in)
Weight Printer 207 kg (456 lb)
