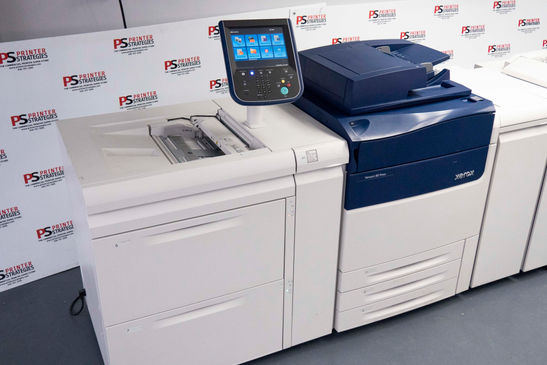

Xerox Versant 80 Digital Color Press
SN: B2R091009
Color Meter: 418,906
B&W Meter: 275,528
Total Meter: 694,434
The V80 is a great machine to base a small printing business around because it is small, has wonderful image quality and tons of features, is inexpensive to both purchase and run, and lends itself to almost any environment.
Performance
Rated speed 80 ppm
Resolution 2400 x 2400 dpi VCSEL ROS / up to 1200 x 1200 x 10 RIP
Recommended average monthly volume 25,000 - 80,000 pages per month
Duty cycle 460,000 pages per month
Line Screens
150, 175, 200, 300, 600 Clustered Dot
150, 200 Rotated Line Screen
FM Stochastic Screen
Technology
Color Technology Xerox Automated Color Quality Suite and In-Line Spectrophotometer
Paper Handling
Paper sources 3 standard trays plus bypass; 3 optional high capacity feeders
Standard paper capacity 1,900 sheets
Maximum paper capacity with options 9,900 sheets
Media Dimensions - Minimum 5.5" x 7.2" (139 x 182 mm)
Media Dimensions - Maximum 13" x 19.2" (330 x 488 mm)
Media Weight - Minimum 52 g/m² (15 lb. bond)
Media Weight - Maximum 350 g/m² (130 lb. cover)
Media Types Coated, uncoated, tabs, envelops, polyester/synthetic, textured, colored, custom media and mixed-stock printing
Input
Tray 1 550 sheets
Tray 2 550 sheets
Tray 3 550 sheets
Tray 5 Bypass: 250 sheets
Optional High Capacity Feeder
High Capacity Feeder: 2,000 sheets
Oversized High Capacity Feeder: One tray at 2,000 sheets
Advanced Oversized High Capcity Feeder: Two trays at 2,000 sheets each
Dual Oversized High Capacity Feeder: Four trays at 2,000 sheets each
Print Controllers
Digital Front Ends
Xerox® EX 80 Print Server Powered by Fiery®
Xerox® EX-i 80 Print Server Powered by Fiery®
Xerox® FreeFlow® Versant 80 Print Server
Environmental
Electrical Requirements North America: 208-240 V, 50/60 Hz, 16 amps / requires 20A circuit, NEMA 6-20-R socket
Europe: 220-240 V, 50 Hz, 20 amps / requires 20A circuit, PCE Shark 023-6 mating socket
Additional electrical required for print server, feeding/finishing devices
115 VAC 15 Amp for 60 Hz or 220 VAC 10 Amp for 50 Hz (Western Hemisphere)
220-240 Volts, 10 Amp, 50 Hz (Europe)
Dimensions 33" (W) x 33" (D) x 48" (H)
840 mm (W) x 831 mm (D) x 1,212 mm (H)
Weight: 651 lb. (295 kg)
