Price /mo

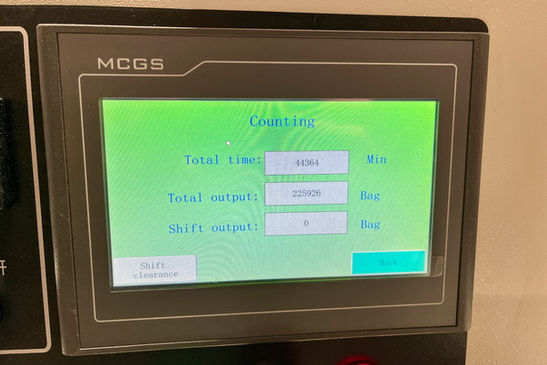

Meter: 225,926
Sellers Note: The appears to include an optional marking attachment, but we are unable to determine which one it is.
The C-Series flow wrappers are used by many bakery, confectionary and edible marijuana manufacturers. Designed with a twin-motor drive, it is considered one of the best flow wrappers of its generation. It is suitable for edibles, candy, cookies, and a wide variety of baked goods and other nonfood products.

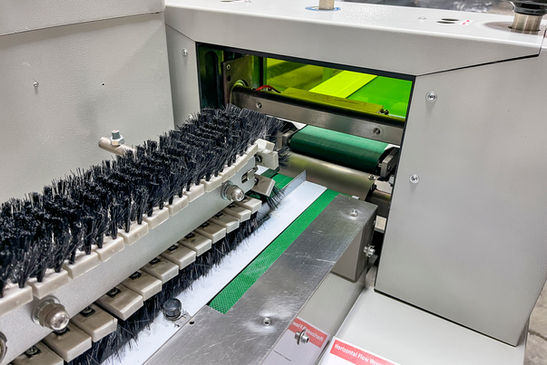

A stainless steel loading table is installed on all C models, where the operator loads products between the infeed chain pushers.
The film reel is loaded on a self-centering shaft. The reel unwind roller is synchronized with the film advance roller which eliminates the possibility of overfeed or underfeed of the film. The end seal system which contains a knife with anvil on the crimp jaws is synchronized with the infeed to eliminate the tendency of products getting caught between the jaws. Both systems are controlled by a PLC and inverter for a high quality result.
All C-Series machines include safety guards with an end seal jam sensor which can detect product jams and film residue on the end seal to stop the machine from going out-of-sync from its end seal position. These machines come with a stainless steel safety guard cover beneath the infeed chain for additional protection.
The C-Series Flow Wrappers provide speeds of up to 100 PPM with a rigid chassis that was designed for much higher speeds.
Specifications:
- Model: C-350
- Electrical: 220V, 1Ø, 10A
- Seal Jaw Width: 7” (178mm)
- Max Film Width: 13.75” (350mm)
- Product Dimensions (L x W x H)
Min 2.5” x 2”
Max 7.5” x 6.25” x 1.5” - Machine Dimensions: 158”L x 30”W x 56”H
- Weight: 1,100lbs (500kg)
View the Manufacturer's Brochure
SN: -9999651
