The Morgana DigiFold Ultra is a creasing/folding machine with full bleed trim capabilities. It can slit, cut, crease, perforate and fold applications in one pass and is robustly designed to complement mid to high volume digital and offset production presses.

The DigiFold Ultra builds on top of the capabilities of the DigiFold Pro XL by adding in slitting and cutting functionality for full-bleed trim applications. It can produce everything that the DigiFold Pro XL can, but now with full bleed trim, in a single pass. High quality applications such as full-bleed 6 or 8-panel brochures become an easy task even for A4 (8.5”x11”) landscape finished formats.

Key Features
Full bleed trimming
Slit, cut, crease, perforate, and fold applications in one pass
Automated full bleed trimming of applications on sheets up to 1300mm long
Creases and folds up to 6,000 A4 / 8.5” x 11” per hour

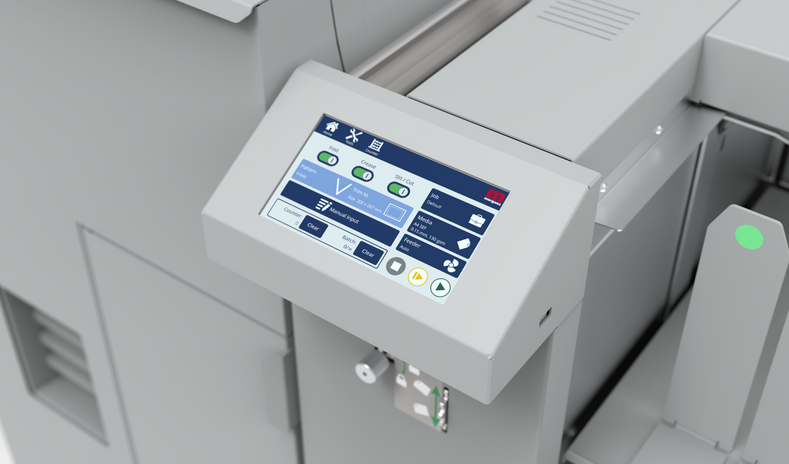

User-friendly UI and highly automated
Full cross perforation available, plus up to five inline perforation/scoring wheels
Up to 30 creases per sheet (static crease)
Equipped with both a belt-stacker for folded sheets and a delivery tray for crease only jobs
Intuitive user interface
Open design feeder for loading ease and efficiency
Can be paired with the BST4000-1 for more production heavy environments

Long sheet trimming capability on the Morgana DigiFold Ultra
The Ultra’s long sheet trimming capability is a strategic complement to the latest printing presses which now offer duplex printing on longer sheets. Instead of purchasing a standard guillotine that can only process up to 560mm long sheets, the Ultra allows customers to fully leverage the capabilities of their new presses, trimming applications up to 1300mm long.

The DigiFold Ultra comes standard with dual folding knives, one DynaCreaser, two slitting knives and one cross-cut knife. The Ultra maintains the high productivity seen on the previous generation Pro XL platforms. There are also attachments such as the Trim Waste Conveyor Belt and BST-4000 Belt Stacker which make the Ultra suited for longer unattended production runs.

After a sheet is fed, two automatically positioned slitters trim off the top and bottom of the sheet and a cross-cut knife is available to cut the lead and trail edges of the sheet. The top and bottom slitters can trim from 5 to 40mm off the top and bottom edges of the sheet and the Cross-Cut Knife can trim from 5 to 20mm on lead and trail edges (unlimited trim on lead edge with multiple cuts).
